argo-cd-git-ops

Motivation

Modern Kubernetes environments thrive on automation, reproducibility, and strong version control. GitOps provides a reliable way to manage infrastructure and applications declaratively: your desired cluster state is stored in Git, and changes are automatically synchronized. This tutorial demonstrates how to deploy Stackable operators and products using ArgoCD, following Infrastructure-as-Code (IaC) and GitOps principles.

You will learn how to:

Deploy Stackable operators and products via Git-managed manifests.
Use Sealed Secrets to securely manage sensitive credentials.
Update Airflow DAGs or modify deployments simply by committing to Git.

This hands-on approach illustrates how GitOps can simplify application lifecycle management and enforce a clear, auditable workflow across single or multiple Kubernetes environments (development, staging, production).

All products and manifests are synced and deployed via ArgoCD (except ArgoCD itself, which is bootstrapped via stackablectl).

System requirements

To run this demo, ensure you have the following prerequisites:

a Kubernetes Cluster (e.g., Kind, Minikube, or managed services like EKS, GKE, AKS).
kubectl: Installed and configured to access your cluster.
Optional: a GitHub account - required for forking and interacting with the demo repository.

Resource requirements for this demo:

15 cpu units (core/hyperthread)
15 GiB memory
5 GiB disk storage

Basic knowledge about ArgoCD and its core concepts are assumed and not explained further.

Architecture

ArgoCD and other deployed products and dependencies are illustrated in the following diagram:

Installation

This demo should not be run alongside other demos.

This demo can be installed on an existing Kubernetes cluster in two ways:

1. Exploration - interact with the ArgoCD, Airflow and Minio web UI

The "easy" way. Checkout the ArgoCD, Airflow and Minio web UI, start DAGs and explore logs.

$ stackablectl demo install argo-cd-git-ops --namespace argo-cd

2. GitOps - interact with a Git repository to apply changes made in code into the cluster

In addition to the exploration part, users can interact with a forked repository and apply changes to the Git repository. These changes then are automatically synced into the cluster.

In order to interact with the Git repository, the stackable demo repository must be forked and additional parameters must be provided to stackablectl. This is explained in more detail in the section How to interact with the Git repository at the bottom.

stackablectl demo install argo-cd-git-ops --namespace argo-cd --parameters customGitUrl=<my-demo-fork-url> --parameters customGitBranch=<my-custom-branch-with-changes>

ArgoCD will be deployed in the argo-cd namespace by stackablectl. ArgoCD itself will create other namespaces for the deployed products.

Sealed Secrets

When managing all resources and configuration via Git, deploying sensitive data like certificates or credentials via Git becomes a problem.

There are multiple solutions to this such as Hashicorp or Bitwarden, which depend heavily on the infrastructure already available.

For the sake of this demo, Bitnami’s Sealed Secrets are utilized. Sensitive data is encrypted as a SealedSecret before commiting to the Git repository, synced via ArgoCD and decrypted by the Sealed Secrets controller into a standard Kubernetes Secret.

This way, everything will be stored and managed in Git.

ArgoCD UI

After bootstrapping ArgoCD via stackablectl, once the pods are ready, you can port-forward the argocd-server Service in order to access the web UI.

kubectl --namespace argo-cd port-forward service/argocd-server 8443:https

In your browser, go to https://localhost:8443 and login with username admin and password adminadmin.

There will be an initial warning from the browser, stating that the site is insecure due to self-signed certificates. This can be ignored in this case.

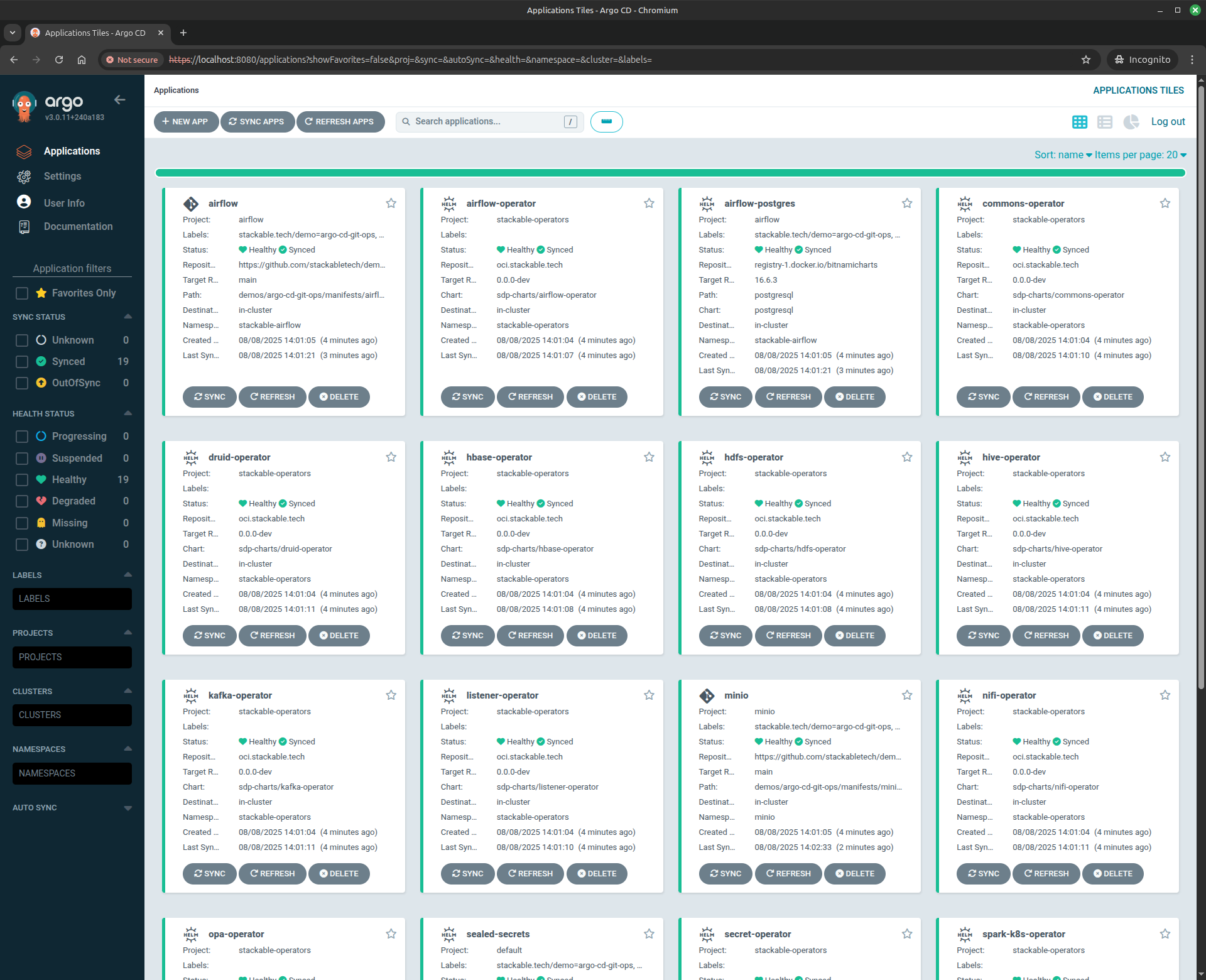

The ArgoCD Web UI entry page shows an overview of deployed applications, their status and other metadata as the repository or the date of the last synchronization run.

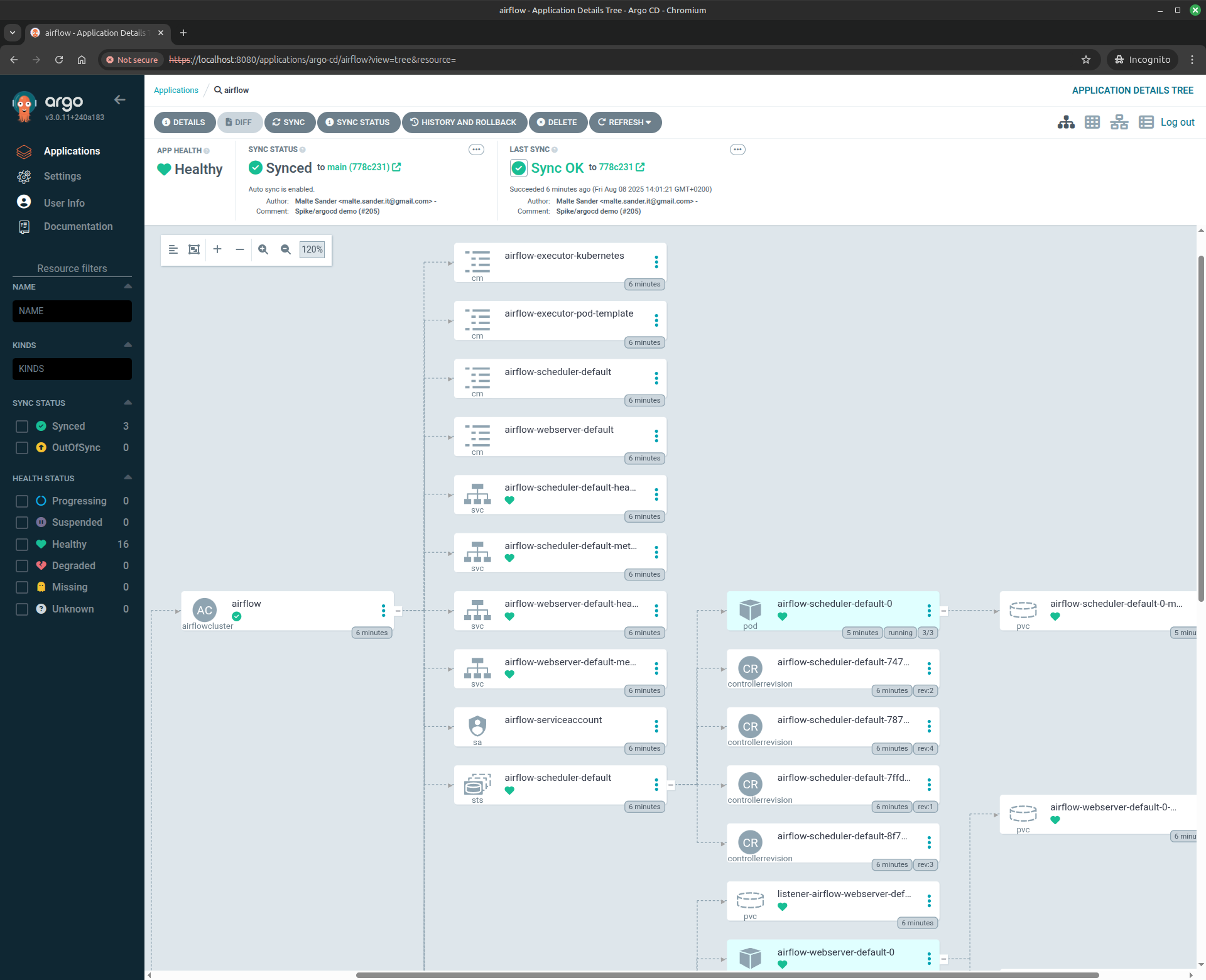

Single applications can be inspected closer after clicking on e.g. the airflow project.

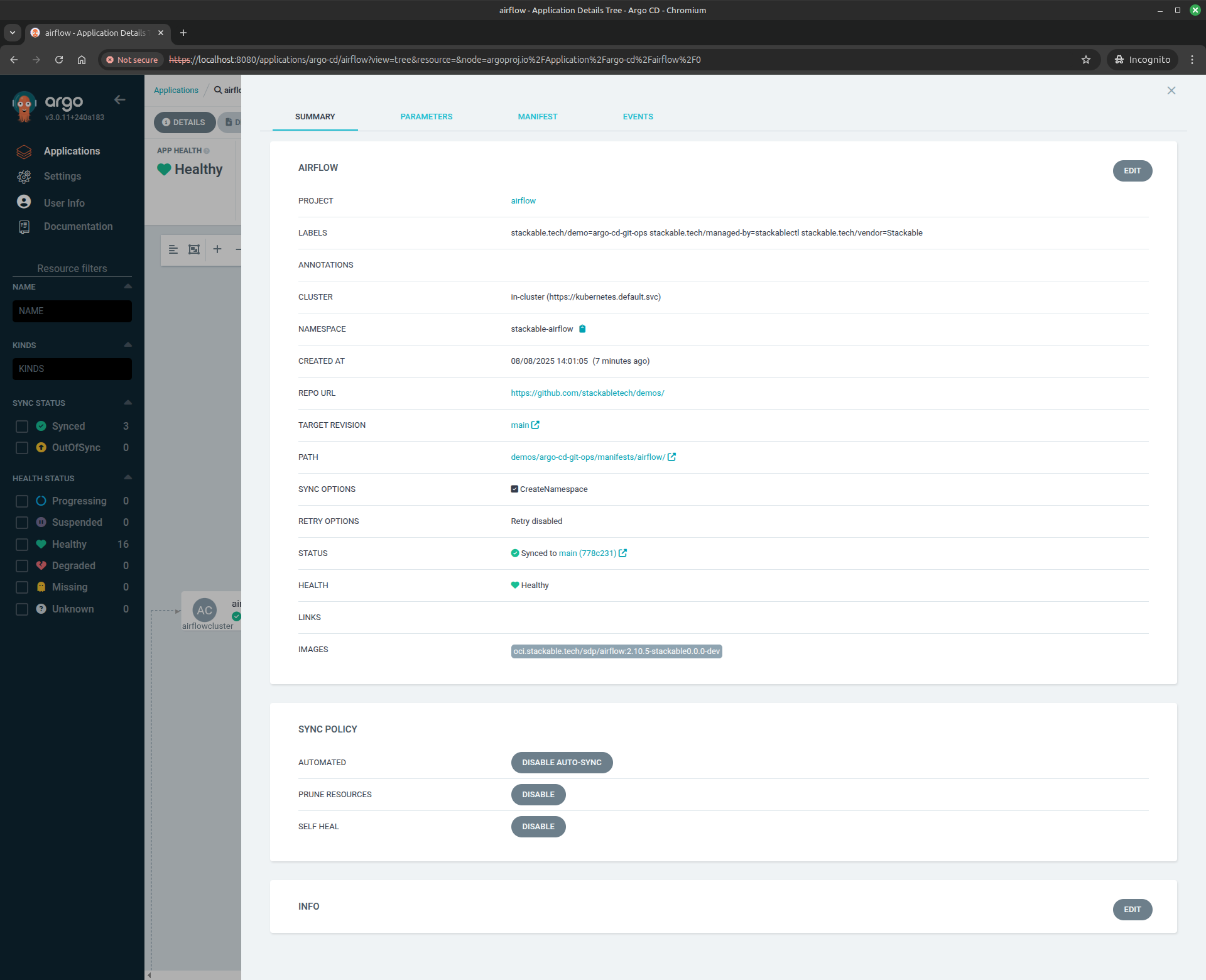

Detailed information about the Airflow cluster, the cluster status and deployed components can be accessed in the application details. Additionally, if the Git repository and the cluster state itself differ, these differences can be previewed in a code diff preview.

Per default in this demo, the ArgoCD Sync Policy is set to auto-sync. This means that changes to the Git repository are immediatly synced into the cluster. This is nice in the demo case, but should be disabled for production use cases.

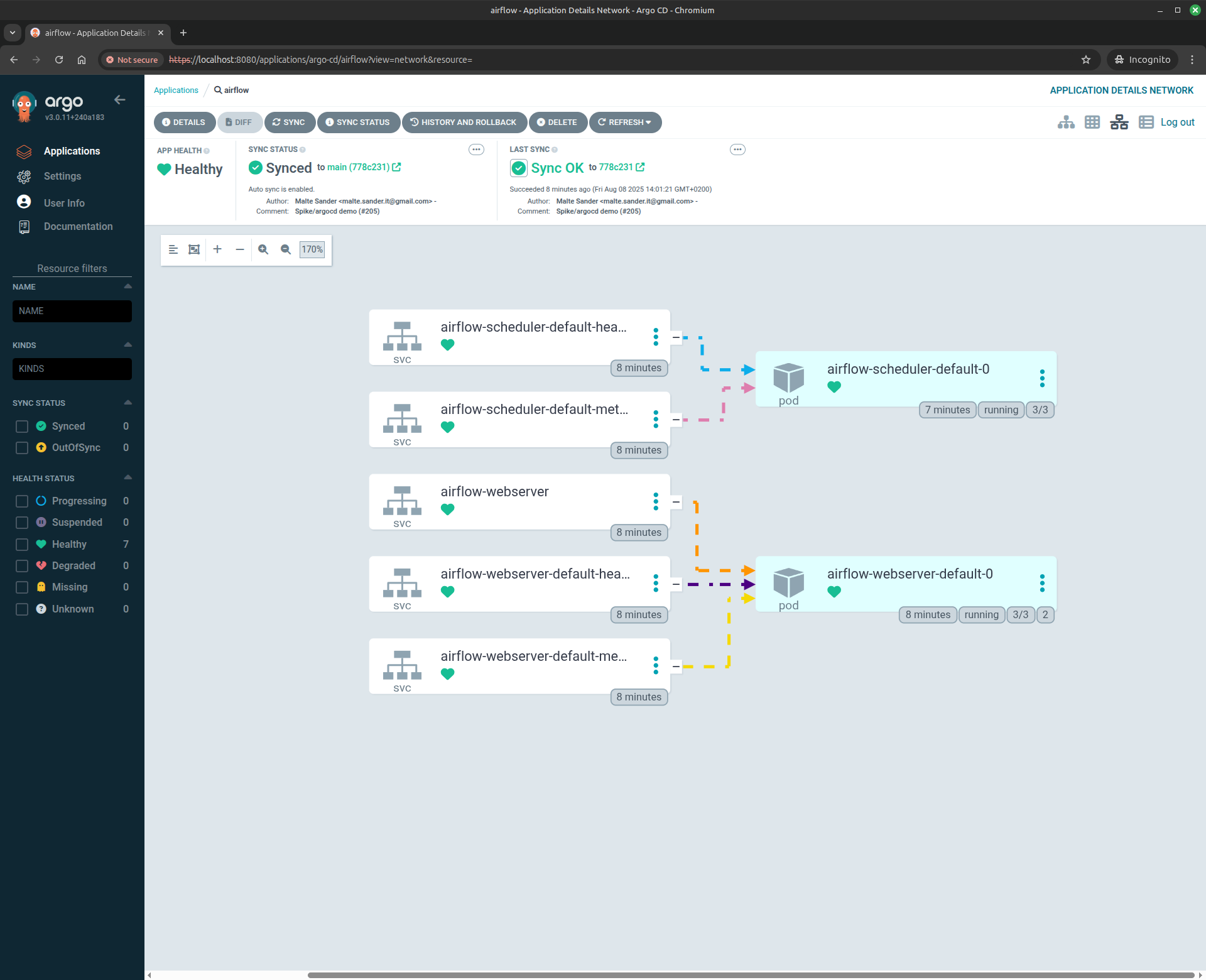

More information about the cluster and e.g. networking can be displayed in the different tabs on the top right.

Now, after a quick overview of the ArgoCD web UI, the following part demonstrates how to sync and deploy Stackable operators via ArgoCD.

Stackable operators

The Stackable operators are deployed via ArgoCD using the Stackable Helm charts and an ArgoCD ApplicationSet. ApplicationSets allow templating, which is required to e.g. manage and deploy to multi cluster environments (e.g. development - staging - production), using different versions and Git sources (repository & branch) as well as the possibility to deploy to different clusters.

This demo does not use a multi cluster environment for the sake of simplicity.

The following part dives deeper into the definition of the Stackable operator ApplicationSet consumed by ArgoCD. Users not interested in the technical parts of the ApplicationSet might skip this section.

Stackable operators ApplicationSet details

apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: stackable-operators
spec:
  generators:
    - matrix:
        generators:
          - list:
              elements: (1)
                - operator: commons
                - operator: listener
                - operator: secret
                - operator: airflow
                - operator: druid
                - operator: hbase
                - operator: hdfs
                - operator: hive
                - operator: kafka
                - operator: nifi
                - operator: opa
                - operator: spark-k8s
                - operator: superset
                - operator: trino
                - operator: zookeeper
          - list:
              elements: (2)
                - cluster: demo
                  server: https://kubernetes.default.svc
                  targetRevision: 25.7.0
                ###########################################################################################
                # The following definitions are not used in this Demo, it is shown for completeness
                # for multi cluster setups
                ###########################################################################################

                ###########################################################################################
                # Development cluster: Checking newest Stackable developments for nightly 0.0.0-dev builds
                ###########################################################################################
                # - cluster: development
                #   server: https://kubernetes-development.default.svc
                #   targetRevision: 0.0.0-dev
                ###########################################################################################
                # Staging cluster: Checking compatibility for upgrades from 25.3.0 to 25.7.0
                ###########################################################################################
                # - cluster: staging
                #   server: https://kubernetes-staging.default.svc
                #   targetRevision: 25.7.0
                ###########################################################################################
                # Production cluster: Currently running release 25.3.0 and awaiting upgrade to 25.7.0
                ###########################################################################################
                # - cluster: production
                #   server: https://kubernetes-production.default.svc
                #   targetRevision: 25.3.0
# [...]

1	List of Stackable operators to install.
2	List of clusters and Stackable release versions for each cluster.

The matrix.generators.list[].elements[] will create a union of parameters (e.g. operator, cluster, server and targetRevision), that may be used in the ApplicationSet template as follows:

# [...]
template:
    metadata:
      name: "{{ operator }}-operator"
    spec:
      project: "stackable-operators" (1)
      ignoreDifferences:
        - group: "apiextensions.k8s.io"
          kind: "CustomResourceDefinition"
          jqPathExpressions:
            - .spec.names.categories | select(. == [])
            - .spec.names.shortNames | select(. == [])
            - .spec.versions[].additionalPrinterColumns | select(. == [])
      source:
        repoURL: "oci.stackable.tech"
        targetRevision: "{{ targetRevision }}" (2)
        chart: "sdp-charts/{{ operator }}-operator" (3)
        helm:
          releaseName: "{{ operator }}-operator" (4)
      destination:
        server: "{{ server }}" (5)
        namespace: "stackable-operators" (6)
      syncPolicy:
        syncOptions:
          - CreateNamespace=true (7)
          - ServerSideApply=true
          - RespectIgnoreDifferences=true
        automated:
          selfHeal: true
          prune: true

1	The ArgoCD project name.
2	The Stackable release version, e.g. `25.7.0` (templated from the matrix generators).
3	The Chart name in the repository e.g. `"sdp-charts/airflow-operator"` (templated from the matrix generators).
4	The Helm release name e.g. `airflow-operator` (templated from the matrix generators).
5	The Kubernetes cluster, e.g. `https://kubernetes.default.svc` for this demo (templated from the matrix generators).
6	The namespace to deploy the operators in. Will be created if `spec.syncPolicy.syncOptions[].CreateNamespace` is set to true.
7	Automatically create missing namespaces.

This allows control over which releases and versions are deployed to which cluster.

Now with ArgoCD, the Sealed Secrets controller and Stackable operators up and running, you can inspect Airflow as the first Stackable product.

Airflow

The Airflow web UI is reachable via Nodeport or easier, using a port-forward:

kubectl --namespace stackable-airflow port-forward service/airflow-webserver 8080:8080

In your browser, go to http://localhost:8080 and login with username admin and password adminadmin. The welcome page and an overview over synced DAGs should be displayed.

Start the DAG

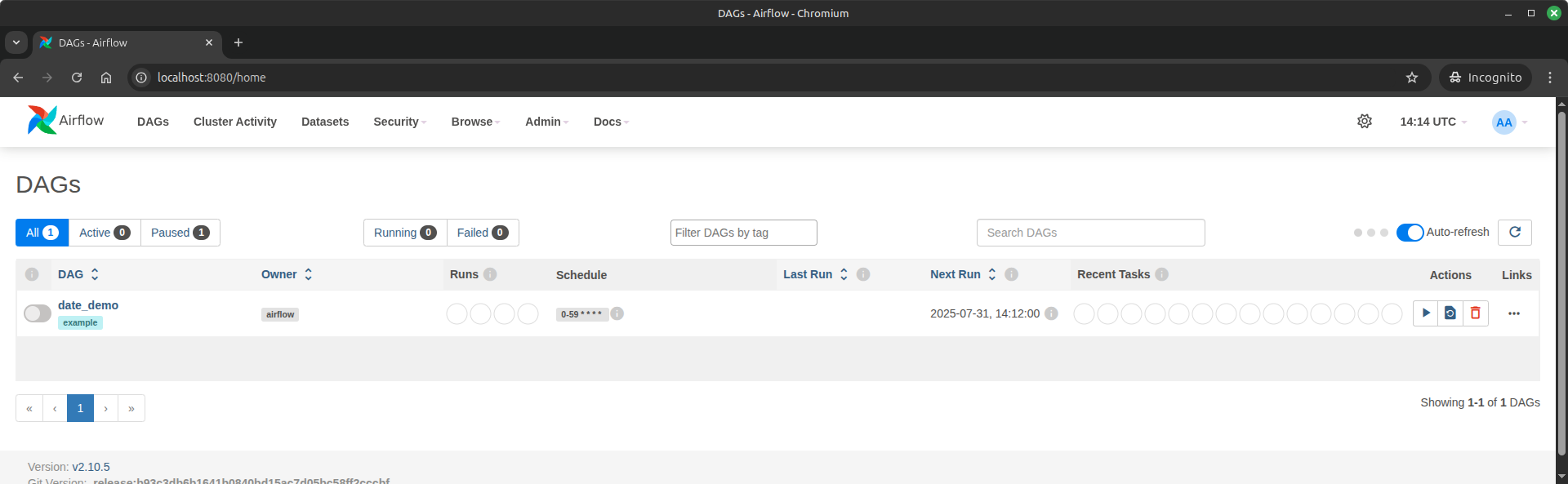

The date_demo DAG can be started by moving the slider and trigger the DAG runs. The DAG itself can be inspected by clicking on it.

Inspect the DAG

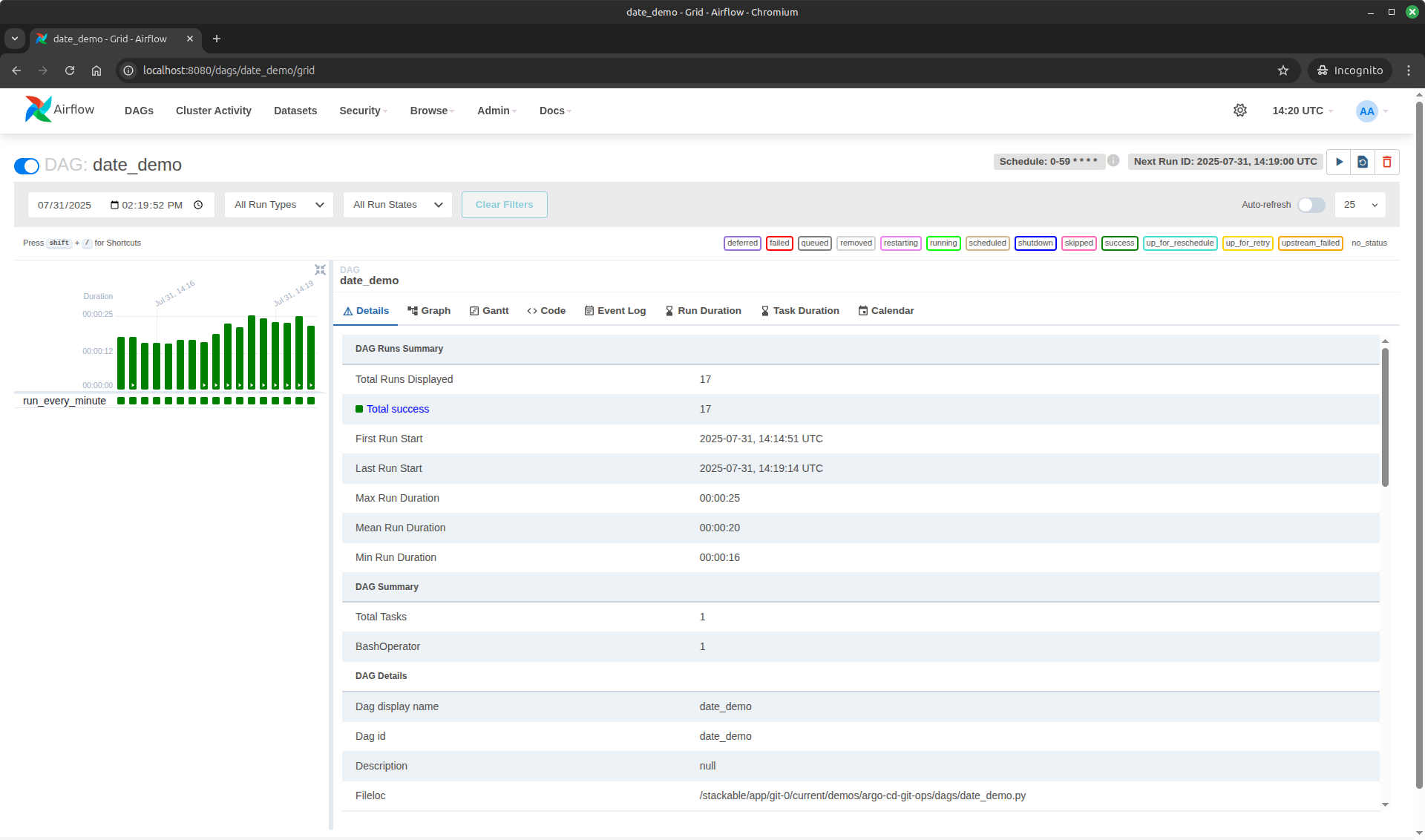

The overview displays details about the DAG runs, durations and other metadata. The graph, code or events can be selected in the tabs for more details.

Inspect a DAG run

A single DAG run can be selected by clicking on one of the green squares next to run_every_minute on the left. More information is displayed here, and the DAG logs written by the Kubernetes Executor to S3/Minio can be selected in the Logs tab.

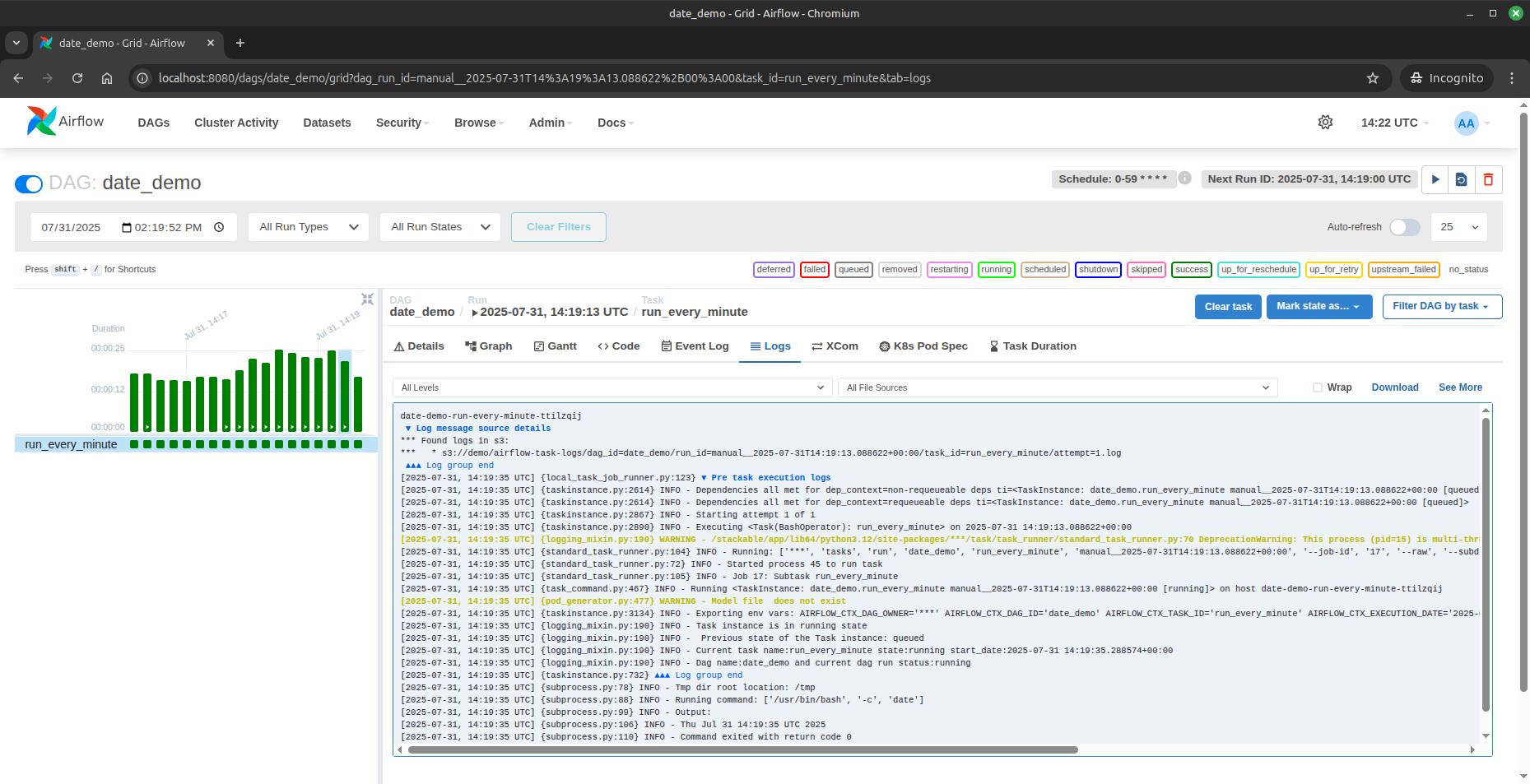

In the logs, the output of the DAG is printed under a line containing Output:, the timestamp of the DAG run.

Minio

Since the Airflow Kubernetes Executor will be deleted after its run, the logs are written to an S3 bucket. When accessing the logs via the Airflow webserver, the logs are fetched from S3 instead of the (already deleted) executor pods. The Minio / S3 instance can be accessed via port-forward:

kubectl --namespace minio port-forward service/minio-console 9001:9001

Minio then is reachable via https://localhost:9001 with username admin and password adminadmin. After the successful Airflow DAG run, logs should be stored in demo/airflow-task-logs.

There will be an initial warning from the browser, stating that the site is insecure due to self-signed certificates. This can be ignored in this case.

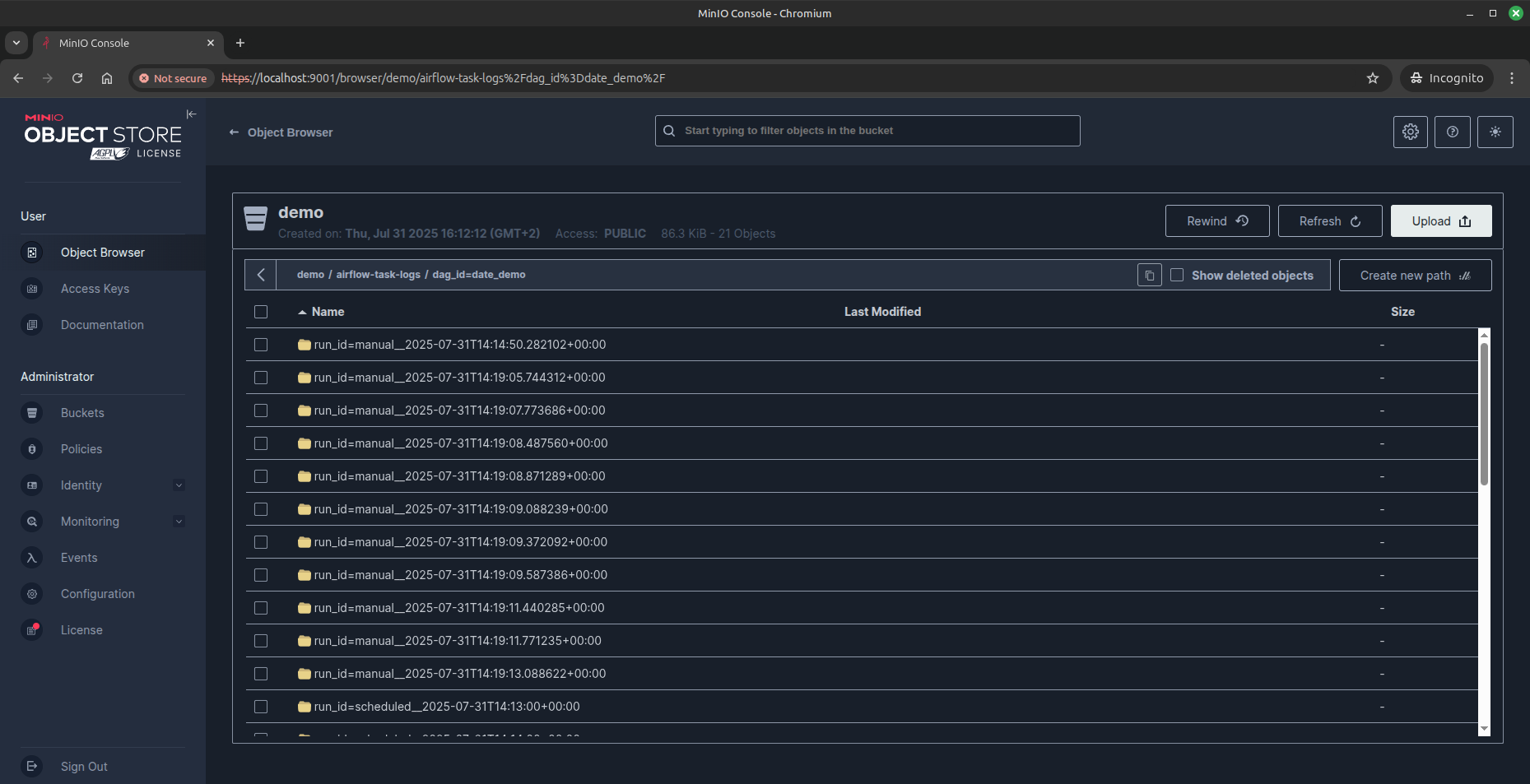

The log files contained in the single folders are the same as the logs shown above in the Airflow web UI.

How to interact with ArgoCD, Airflow and the Git repository

Since this Demo is hosted in the Stackable Demo repository, where merging etc. requires approval, the recommendation is to fork and clone the Stackable Demo repository. This requires a two-step process:

1. Forking the demo repository

This GitHub tutorial shows how to fork a repository.

2. Cloning the demo repository

Clone the demo repository:

git clone https://github.com/<your-username>/demos.git
cd demos

After forking and cloning a local copy, the stackablectl install command must be parameterized with the forked repository URL and branch.

stackablectl demo install argo-cd-git-ops --namespace argo-cd --parameters customGitUrl=<my-demo-fork-url> --parameters customGitBranch=<my-custom-branch-with-changes>

Making changes to the repository

After obaining a local copy, changes made to Stackable manifests or Airflow DAGs can be integrated via GitOps. Edit Stackable manifests or add new DAGs within your cloned repository:

Manifests are in: demos/argo-cd-git-ops/manifests/
Airflow DAGs are in: demos/argo-cd-git-ops/dags/

1. Increase Airflow webserver replicas

Assuming your working directory is the root of the forked demo repository, try to increase the spec.webservers.roleGroups.<role-group>.replicas in the folder demos/argo-cd-git-ops/manifests/airflow/airflow.yaml. Once this is pushed / merged, ArgoCD should sync the changes and you should see more webserver pods.

2. Add new Airflow DAGs

In the demos/argo-cd-git-ops/manifests/airflow/airflow.yaml manifest you have to adapt the git-sync configuration for DAGs to the forked repository:

    dagsGitSync:
      - repo: https://github.com/<your-username>/demos/
        branch: <my-custom-branch-with-changes>
        [...]

After adding a new DAG to the folder demos/argo-cd-git-ops/dags/, Airflow should pick up the new DAG via git-sync and display it in the UI. This may take up to a couple of minutes to be displayed in the UI.

The synchronisation status of the DAGs can be monitored in via the Airflow scheduler:

kubectl logs -n stackable-airflow -c airflow -f svc/airflow-scheduler-default-headless

which should show output the DAG processing stats:

================================================================================
DAG File Processing Stats

File Path                                                               PID  Runtime      # DAGs    # Errors  Last Runtime    Last Run      Last # of DB Queries
--------------------------------------------------------------------  -----  ---------  --------  ----------  --------------  ----------  ----------------------
/stackable/app/git-0/current/demos/argo-cd-git-ops/dags/date_demo.py     51  0.03s             0           0                                                   0
================================================================================
[2025-08-06T15:32:23.182+0000] {kubernetes_executor_utils.py:95} INFO - Kubernetes watch timed out waiting for events. Restarting watch.
[2025-08-06T15:32:23.345+0000] {manager.py:997} INFO -
================================================================================

If another DAG is displayed, try to refresh the Airflow UI if changes have not been propagated yet.

3. Commit and push changes

git checkout -b <my-custom-branch-with-changes>
git add .
git commit -m "Update Airflow configuration and add new DAG"
git push origin <my-custom-branch-with-changes>

Now ArgoCD and Airflow should sync the respective changes into the cluster.

Conclusion

This demo acts as a blueprint for showing how complex data platform components can be managed with ArgoCD and GitOps. Once familiar with this pattern, you can extend it to multi-cluster environments, add CI/CD pipelines for automated manifest testing, or integrate external secret stores like HashiCorp Vault for production use. This setup lays the foundation for a fully automated, scalable, and secure Kubernetes-based data platform.

This tutorial demonstrates how ArgoCD and Stackable can be combined to deliver a streamlined GitOps experience:

All cluster resources and workloads are managed declaratively via Git.
ArgoCD continuously ensures the cluster state matches Git.
Sealed Secrets provide secure and auditable secret management.
Airflow DAG updates occur automatically by committing code to the repository.

This approach scales naturally across environments - development, staging, and production - while reducing manual operations, improving visibility, and enforcing consistency. By adopting GitOps with ArgoCD and Stackable, teams gain a clear, auditable, and automated path from code to production.

Next steps:

Explore multi-cluster ApplicationSet deployments to target multiple Kubernetes clusters.
Integrate CI workflows to automatically validate and merge manifest updates.
Expand beyond Airflow to manage additional Stackable components (e.g., Kafka, Trino, Superset).
Experiment with DataOps (e.g., Airflow and Trino).
