This demo showcases the integration between Jupyter and Apache Hadoop deployed on the Stackable Data Platform (SDP) Kubernetes cluster. JupyterLab is deployed using the pyspark-notebook stack provided by the Jupyter community. The SDP makes this integration easy by publishing a discovery ConfigMap for the HDFS cluster. This ConfigMap is then mounted in all Pods running PySpark notebooks so that these have access to HDFS data. For this demo, the HDFS cluster is provisioned with a small sample of the NYC taxi trip dataset, which is analyzed with a notebook that is provisioned automatically in the JupyterLab interface.

Install this demo on an existing Kubernetes cluster:

$ stackablectl demo install jupyterhub-pyspark-hdfs-anomaly-detection-taxi-data

This demo should not be run alongside other demos.

System requirements

To run this demo, your system needs at least:

8 cpu units (core/hyperthread)
32GiB memory
22GiB disk storage

Aim / Context

This demo does not use the Stackable operator for Spark but rather delegates the creation of executor pods to JupyterHub. The intention is to demonstrate how to interact with SDP components when designing and testing Spark jobs: the resulting script and Spark job definition can then be transferred with a Stackable SparkApplication resource. When logging in to JupyterHub (described below), a pod will be created with the username as a suffix, e.g. jupyter-admin. Doing so runs a container hosting a Jupyter Notebook with pre-installed Spark, Java and Python. When the user creates a SparkSession, temporary spark executors are constructed that are persisted until the notebook kernel is shut down or restarted. The notebook can thus be used as a sandbox for writing, testing and benchmarking Spark jobs before they are moved into production.

Overview

This demo will:

Install the required Stackable Data Platform operators.
Spin up the following data products:
- JupyterHub: A multi-user server for Jupyter notebooks
- Apache HDFS: A distributed file system used to store the taxi dataset
Download a sample of the NY taxi dataset into HDFS.
Install Jupyter notebook.
Train an anomaly detection model using PySpark on the data available in HDFS.
Perform some predictions and visualize anomalies.

HDFS

The Stackable Operator for Apache HDFS will spin up an HDFS cluster to store the taxi dataset in Apache Parquet format. This dataset will be read and processed via PySpark.

Before trying out the notebook example in Jupyter, check if the taxi data was loaded to HDFS successfully:

$ kubectl exec -c namenode -it hdfs-namenode-default-0 -- /bin/bash -c "./bin/hdfs dfs -ls /ny-taxi-data/raw"
Found 1 items
-rw-r--r--   3 stackable supergroup  314689382 2022-11-23 15:01 /ny-taxi-data/raw/fhvhv_tripdata_2020-09.parquet

There should be one parquet file containing taxi trip data from September 2020.

JupyterHub

Have a look at the available Pods before logging in:

$ kubectl get pods
NAME                         READY   STATUS      RESTARTS   AGE
hdfs-datanode-default-0      1/1     Running     0          5m12s
hdfs-journalnode-default-0   1/1     Running     0          5m12s
hdfs-namenode-default-0      2/2     Running     0          5m12s
hdfs-namenode-default-1      2/2     Running     0          3m44s
hub-567c994c8c-rbdbd         1/1     Running     0          5m36s
load-test-data-5sp68         0/1     Completed   0          5m11s
proxy-7bf49bb844-mhx66       1/1     Running     0          5m36s
zookeeper-server-default-0   1/1     Running     0          5m12s

JupyterHub will create a Pod for each active user. In order to reach the JupyterHub web interface, create a port-forward:

$ kubectl port-forward service/proxy-public 8080:http

Use the proxy-public service and not something else!

Now access the JupyterHub web interface via http://localhost:8080

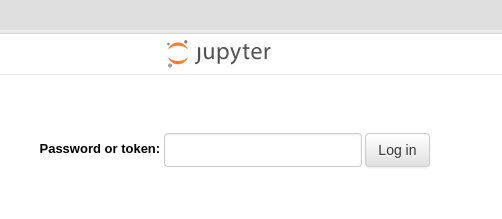

You should see the JupyterHub login page.

$ kubectl get pods
NAME                         READY   STATUS      RESTARTS   AGE
hdfs-datanode-default-0      1/1     Running     0          6m12s
hdfs-journalnode-default-0   1/1     Running     0          6m12s
hdfs-namenode-default-0      2/2     Running     0          6m12s
hdfs-namenode-default-1      2/2     Running     0          4m44s
hub-567c994c8c-rbdbd         1/1     Running     0          6m36s
jupyter-admin                1/1     Running     0          77s
load-test-data-5sp68         0/1     Completed   0          6m11s
proxy-7bf49bb844-mhx66       1/1     Running     0          6m36s
zookeeper-server-default-0   1/1     Running     0          6m12s

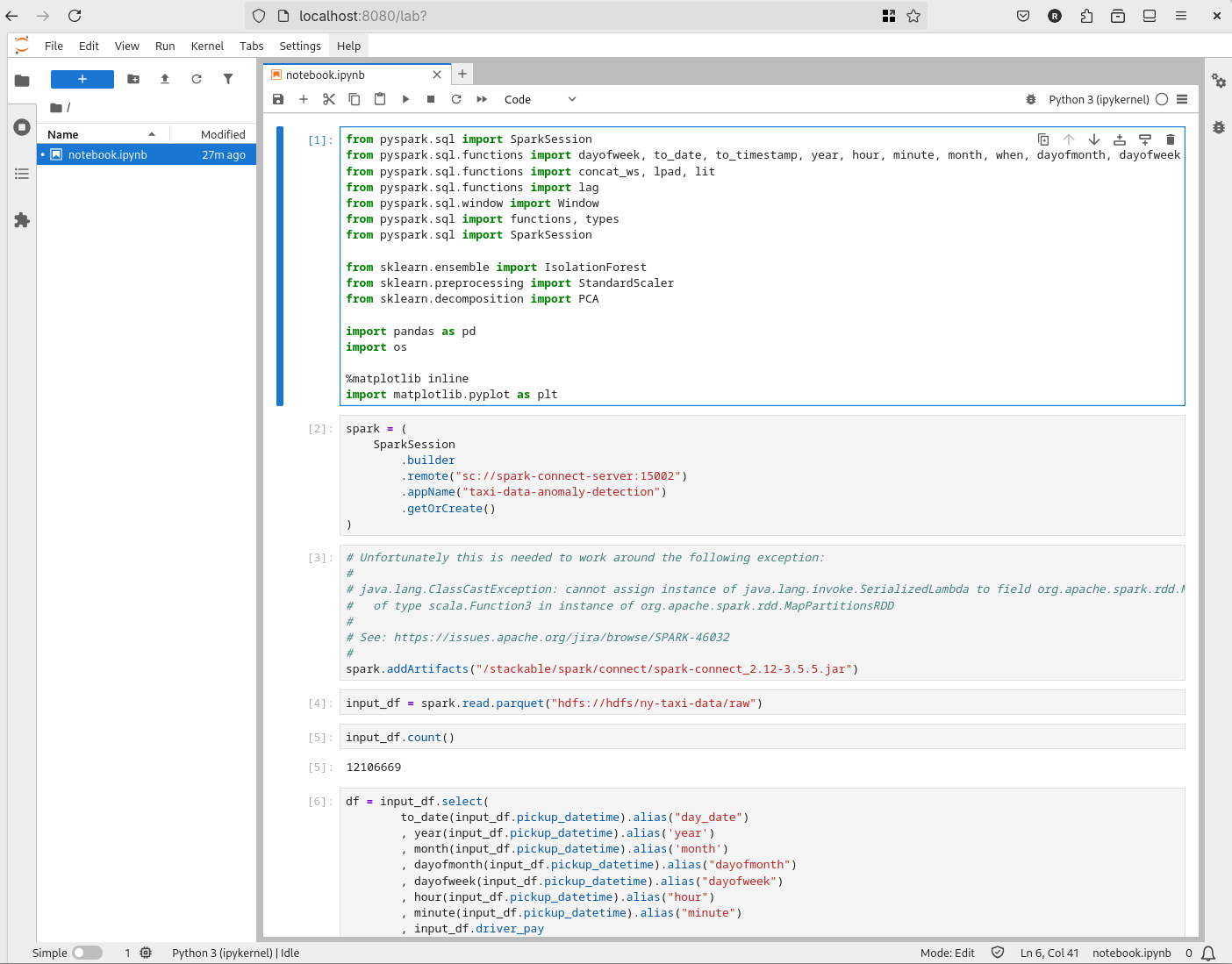

You should arrive at your workspace:

Now you can double-click on the notebook folder on the left, open and run the contained file. Click on the double arrow (⏩️) to execute the Python scripts (click on the image below to go to the notebook file).

You can also inspect the hdfs folder where the core-site.xml and hdfs-site.xml from the discovery ConfigMap of the HDFS cluster are located.

The image defined for the spark job must contain all dependencies needed for that job to run. For PySpark jobs, this will mean that Python libraries either need to be baked into the image or packaged in some other way. This demo contains a custom image created from a Dockerfile that is used to generate an image containing scikit-learn, pandas and their dependencies. This is described below.

Install the libraries into a product image

Libraries can be added to a custom product image launched by the notebook. Suppose a Spark job is prepared like this:

spark = (SparkSession
            .builder
            .master(f'k8s://https://{os.environ["KUBERNETES_SERVICE_HOST"]}:{os.environ["KUBERNETES_SERVICE_PORT"]}')
            .config("spark.kubernetes.container.image", "docker.stackable.tech/demos/spark-k8s-with-scikit-learn:3.5.0-stackable24.3.0")
            .config("spark.driver.port", "2222")
            .config("spark.driver.blockManager.port", "7777")
            .config("spark.driver.host", "driver-service.default.svc.cluster.local")
            .config("spark.driver.bindAddress", "0.0.0.0")
            .config("spark.kubernetes.authenticate.driver.serviceAccountName", "spark")
            .config("spark.kubernetes.authenticate.serviceAccountName", "spark")
            .config("spark.executor.instances", "4")
            .config("spark.kubernetes.container.image.pullPolicy", "IfNotPresent")
            .appName("taxi-data-anomaly-detection")
            .getOrCreate()
        )

It requires a specific Spark image:

.config("spark.kubernetes.container.image",
  "docker.stackable.tech/demos/spark-k8s-with-scikit-learn:3.5.0-stackable24.3.0"),
...

This is created by taking a Spark image, in this case docker.stackable.tech/stackable/spark-k8s:3.5.0-stackable24.3.0, installing specific python libraries into it , and re-tagging the image:

FROM docker.stackable.tech/stackable/spark-k8s:3.5.0-stackable24.3.0

COPY demos/jupyterhub-pyspark-hdfs-anomaly-detection-taxi-data/requirements.txt .

RUN pip install --no-cache-dir --upgrade pip && \
    pip install --no-cache-dir -r ./requirements.txt

Where requirements.txt contains:

scikit-learn==1.3.1
pandas==2.0.3

Using a custom image requires access to a repository where the image can be made available.

Model details

The job uses an implementation of the Isolation Forest algorithm provided by the scikit-learn library: the model is trained and then invoked by a user-defined function (see this article for how to call the sklearn library with a pyspark UDF), all of which is run using the Spark executors spun up in the current SparkSession. This type of model attempts to isolate each data point by continually partitioning the data. Data closely packed together will require more partitions to separate data points. In contrast, any outliers will require less: the number of partitions needed for a particular data point is thus inversely proportional to the anomaly "score".

Visualization

The notebook shows how to plot the outliers against a particular metric (e.g. "number of rides"):

However, this is mainly for convenience - the anomaly score is derived from the entire feature space, i.e., it considers all dimensions (or features/columns) when scoring data, meaning that not only are the results challenging to visualize (how can multidimensional data be represented in only 3-D dimensional space?), but that a root cause analysis has to be a separate process. It would be tempting to look at just one metric and assume causal effects, but the model "sees" all features as a set of numerical values and derives patterns accordingly.

We can tackle the first of these issues by collapsing - or projecting - our data into a manageable number of dimensions that can be plotted. Once the script has finished successfully, plots should be displayed on the bottom that show the same data in 2D and 3D representation. The 3D plot should look like this:

The model has detected outliers even though that would not have been immediately apparent from the time-series representation alone.
