Debug network traffic

You likely know this problem: Some tools is behaving weird, and you need to debug (often times HTTP/HTTPS or DNS) traffic between Kubernetes Pods. If the tool would be running on a local machine, one would simply start tcpdump and inspect the traffic. Maybe use mitmproxy as a HTTPS proxy to re-encrypt the HTTPS traffic, so that it is readable.

However, as we are running in a containerized environment, things are a bit more complicated. This guide explains you how you can capture and inspect traffic anyway.

There are a few things needed:

  1. A sidecar running tcpdump, capturing the traffic into a file.

  2. If TLS (e.g. HTTPS) traffic is involved, the product needs to be configured in such a way, that it writes the TLS session keys into a file. The key log can be used afterwards to decrypt the TLS traffic.

  3. Wireshark to make it easier to inspect the captured traffic. You can give it the TLS key log and it will automatically decrypt the TLS traffic.

Simple usage

If you only care about unencrypted communications, you can use this snippet to dump all traffic using tcpdump.

apiVersion: trino.stackable.tech/v1alpha1
kind: TrinoCluster
metadata:
  name: trino
spec:
  coordinators:
    podOverrides:
      spec:
        containers:
          - name: tcpdump
            image: nicolaka/netshoot
            command: ["/bin/bash"]
            args:
              - -c
              # If the dump grows to big, you can use regular tcpdump filters here
              # to filter the captured traffic
              - tcpdump -i any -w /tmp/tcpdump.pcap

Attach without restart

You can also use something like kubectl debug trino-coordinator-default-0 -it --image=nicolaka/netshoot -c tcpdump to use a debug container and attach to a Pod without restart.

TLS decryption usage

Let’s make things a bit more interesting using a real-world example. Let’s assume Superset is behaving weird and we want to debug the network traffic from Superset to Trino, which is using HTTPS.

As of Java 21 the JVM does not respect the SSLKEYLOGFILE env var and does not seem to have support to write the TLS key log. So we need to use a third-party Java agent called extract-tls-secrets for that.

apiVersion: trino.stackable.tech/v1alpha1
kind: TrinoCluster
metadata:
  name: trino
spec:
  coordinators:
    envOverrides:
      SSLKEYLOGFILE: /tmp/sslkeys.log
    podOverrides:
      spec:
        # As we can not add a curl command to the Trino startup script, we add a initContainer,
        # that curls the needed jar for us
        initContainers:
          - name: download-java-agent
            image: nicolaka/netshoot # We only need curl, reusing same image for quicker pulls
            command: ["/bin/bash"]
            args:
              - -c
              - curl -L -o /jar/extract-tls-secrets.jar https://github.com/neykov/extract-tls-secrets/releases/download/v4.0.0/extract-tls-secrets-4.0.0.jar
            volumeMounts:
              - name: jar
                mountPath: /jar
        containers:
          - name: tcpdump
            image: nicolaka/netshoot
            command: ["/bin/bash"]
            args:
              - -c
              # If the dump grows to big, you can use regular tcpdump filters here
              # to filter the captured traffic
              - tcpdump -i any -w /tcpdump/tcpdump.pcap
            volumeMounts:
              - name: tcpdump
                mountPath: /tcpdump
          - name: trino
            volumeMounts:
              - name: jar
                mountPath: /jar
        volumes:
          - name: jar
            emptyDir: {}
          # As the dump can grow quite big we use a dedicated emptyDir for it
          - name: tcpdump
            emptyDir: {}
    jvmArgumentOverrides:
      add:
        - -javaagent:/jar/extract-tls-secrets.jar=/tmp/sslkeys.log

Your Trino now captures all traffic into tcpdump.pcap and the SSL key logs into sslkeys.log.

Use the following command to copy the files to your local machine

kubectl cp trino-coordinator-default-0:/tcpdump/tcpdump.pcap -c tcpdump tcpdump.pcap && kubectl cp trino-coordinator-default-0:/tmp/sslkeys.log -c trino sslkeys.log

To inspect the traffic in Wireshark run

wireshark -o tls.keylog_file:./sslkeys.log tcpdump.pcap

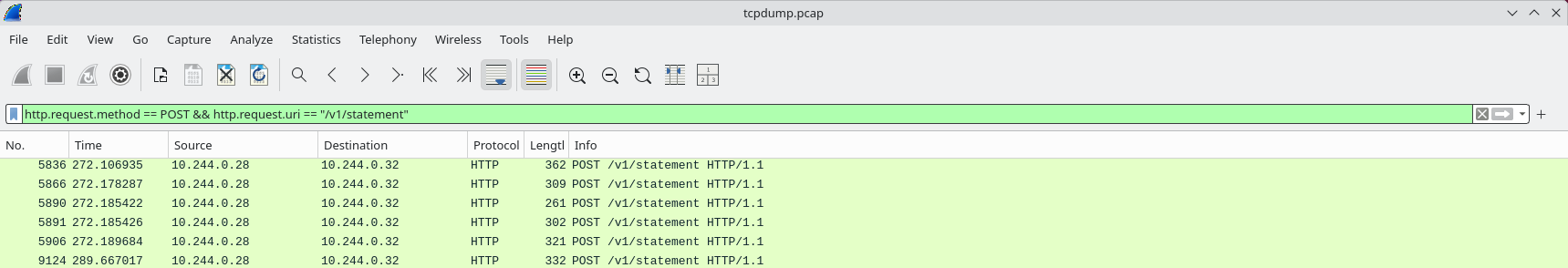

Normal Wireshark usage applies now. E.g. for the case of Trino we want to see all POST /v1/statement HTTPS calls. You can filter for them using http.request.method == POST && http.request.uri == "/v1/statement":

1

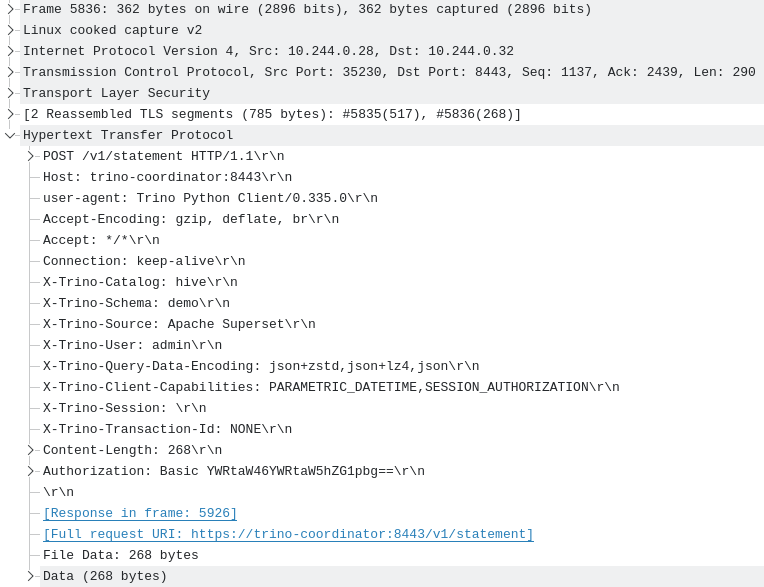

You can see that the HTTP packet was actually TLS encrypted in the packet explorer at the bottom.

2

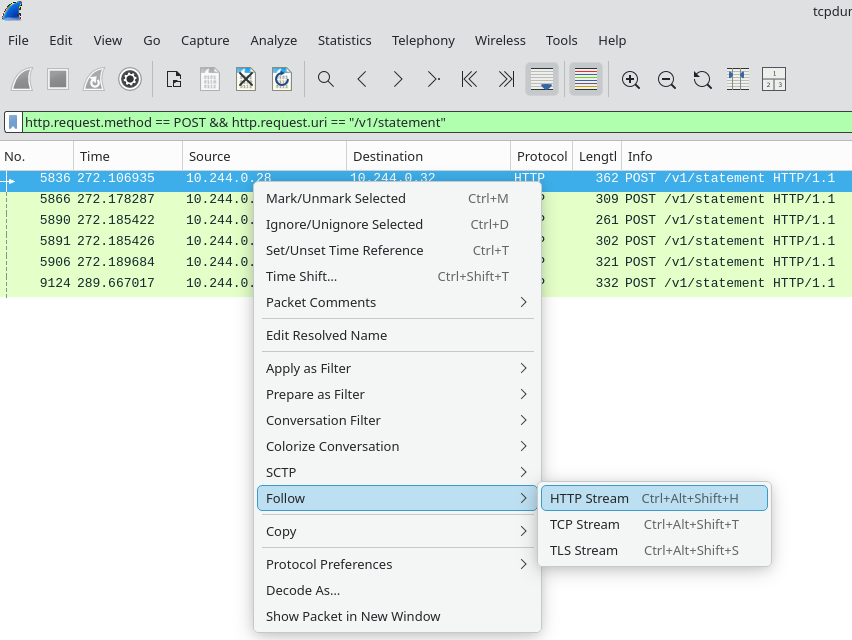

To follow the entire HTTP stream, right-click on the packet and select FollowHTTP Stream.

3

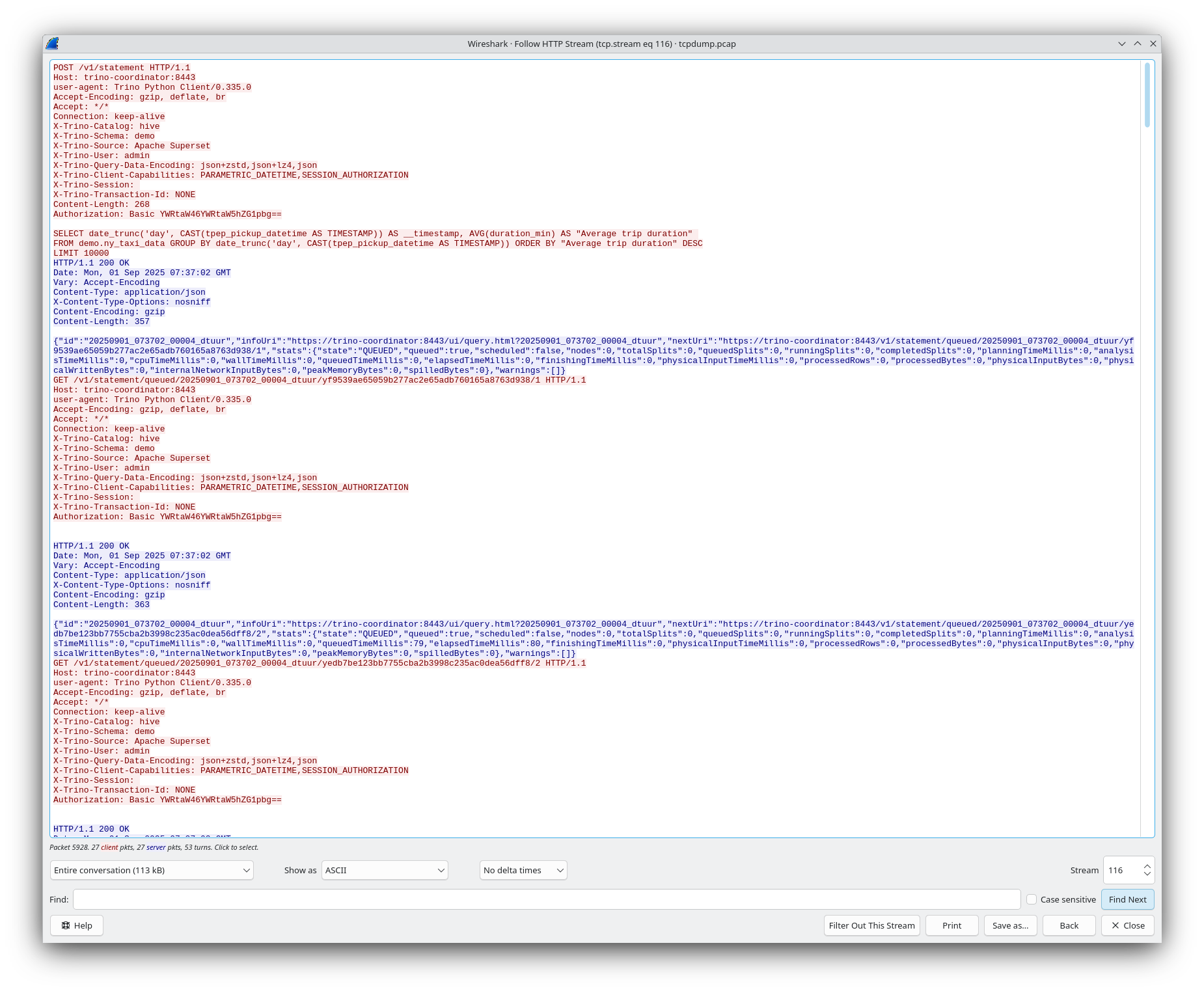

You now see the entire Superset → Trino conversation, in this case the following SQL query:

SELECT date_trunc('day', CAST(tpep_pickup_datetime AS TIMESTAMP)) AS __timestamp, AVG(duration_min) AS "Average trip duration"
FROM demo.ny_taxi_data GROUP BY date_trunc('day', CAST(tpep_pickup_datetime AS TIMESTAMP)) ORDER BY "Average trip duration" DESC
LIMIT 10000
4

Follow-up tips

  1. You can filter the packets in the tcpdump call to reduce the capture file size.

  2. If you do this on a production setup, keep in mind that the dump might contain sensitive data and the TLS keys can be used to decrypt all TLS traffic of this Pod!

  3. In case the product uses HTTP 2 (or newer), you need to use a Wireshark filter such as http2.headers.path == "/nifi-api/flow/current-user"
