EntraID

Overview

This example demonstrates how to provide a static set of RBAC permissions for users that are fetched from an EntraID backend. The user- and group-identifiers are those used by EntraID, but other UUIDs - such as for the policy identifiers - are automatically generated when required by Apache NiFi or are honoured if UUIDs (which are unique, after all) are provided. It is often helpful if the initial (or "root") process group is readable by the initial admin, and the NiFi code has been patched to make this possible.

Download the complete manifest of all objects created by this example and edit it according to the description in the next sections.

Cluster

Create a new local cluster (e.g. with [Kind](https://kind.sigs.k8s.io/docs/user/quick-start/) and the [stackablectl tool](https://github.com/stackabletech/stackablectl)).

Creates a new Kind cluster named stackable-data-platform.

kind create cluster --name stackable-data-platform

Install the latest Stackable Data Platform operators.

stackablectl operator install commons secret listener nifi

Prerequisites

This example assumes that an EntraID backend is available and that an Application (in this example, Nifi-Entra-Test) has been configured with a web redirect URI.

Create a dedicated namespace in which to run the example:

kubectl create namespace nifi

Apply a secret containing the following fields necessary for EntraID connectivity:

apiVersion: v1
kind: Secret
metadata:
  name: oidc-secret
stringData:
  auth.endpoint: https://login.microsoftonline.com
  directory.id: <DIRECTORY-ID>
  client.id: <CLIENT-ID>
  client.secret: <CLIENT-SECRET>
  filter.prefix: <FILTER-PREFIX> # e.g. Nifi-Entra
  initial.admin: <INIT-ADMIN> # an existing EntraID user
  initial.admin.uuid: <ADMIN-UUID> # the Entra Admin user UUID
  initial.group.uuid: <GROUP-UUID> # the initial group UUID
  discovery.url: https://login.microsoftonline.com/<DIRECTORY-ID>/v2.0/.well-known/openid-configuration

Apply the NiFi cluster resource:

kubectl apply -f examples/entra_nifi.yaml -n nifi

Usage

Once the cluster is running, you will need to make a note of the listener endpoint. This can be found by inspecting the listener class:

kubectl get listeners/test-nifi-node -n nifi -o yaml | yq '[.status][0] | ("https://" + .ingressAddresses[0].address + ":" + .nodePorts.https)'

which yields e.g.

https://172.19.0.3:31131

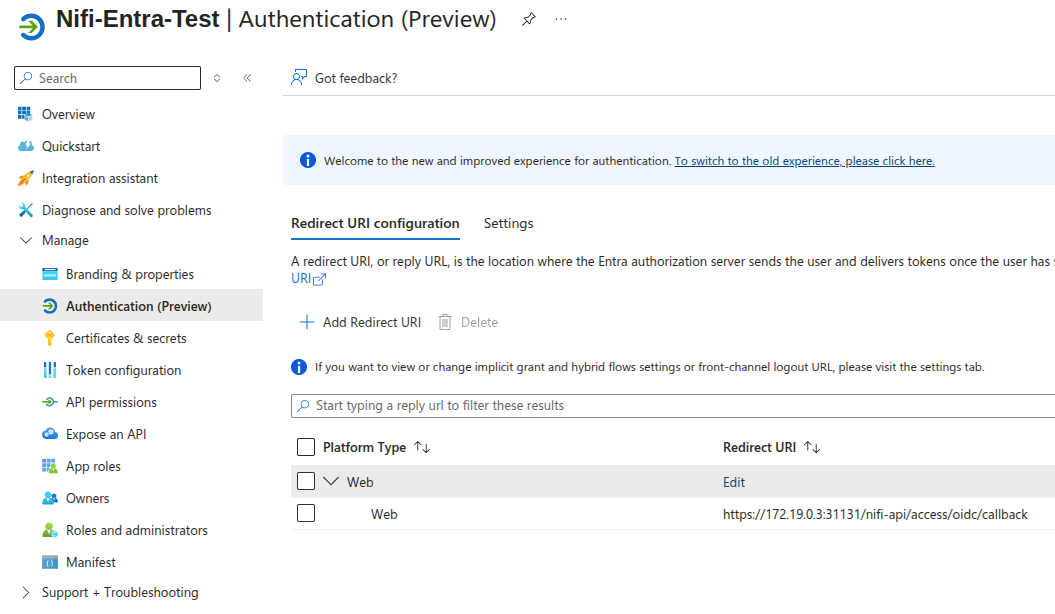

The web endpoint for app running against Entra needs to be updated with this endpoint as the prefix i.e.

EntraID Web URI

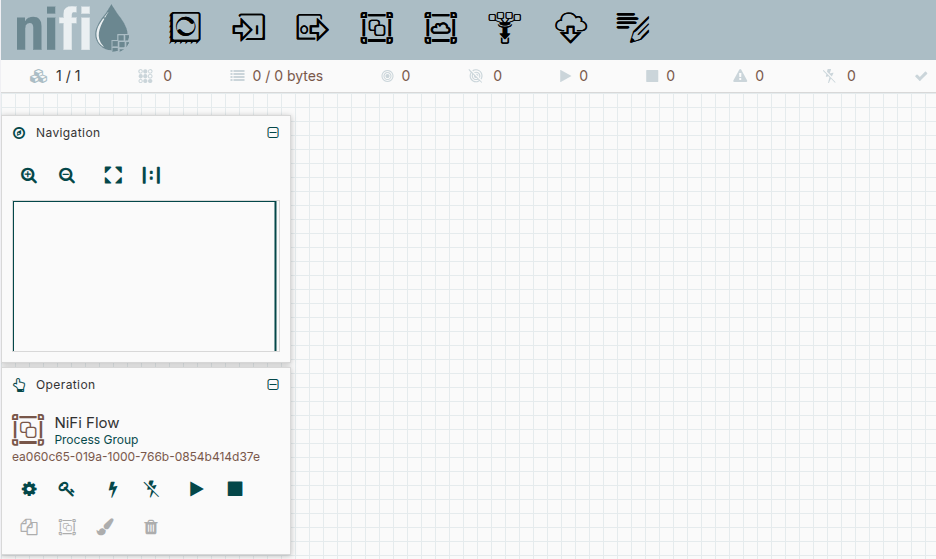

Paste this endpoint into the browser and you will be directed to the Azure portal login portal (to enter the credentials for the user designated as the initial admin) and then redirected back to the NiFi UI. The UI opens up on a writable canvas, in this case with the UUID ea060c65-019a-1000-766b-0854b414d37e:

NiFi canvas

The initial admin has immediate access as the static authorizations.xml file provided via the ConfigMap defined this:

<policy identifier="c8d5a9ba-0199-1000-0000-00003d66cc46" resource="/data/process-groups/root" action="W">
    <user identifier="${env:INITIAL_ADMIN_UUID}"/>
</policy>

and the root part of this has been updated with the actual root process group:

<policy identifier="c8d5a9ba-0199-1000-0000-00003d66cc46" resource="/data/process-groups/ea060c65-019a-1000-766b-0854b414d37e" action="W">
    <user identifier="${env:INITIAL_ADMIN_UUID}"/>
</policy>

This requires that the following be set:

configOverrides:
    nifi.properties:
    ...
    nifi.process.group.root.placeholder: "root"

so that it is clear which placeholder - if any - should be patched.
