First steps

Once you have followed the steps in the Installation section to install the Operator and its dependencies, you will now deploy a Airflow cluster and its dependencies. Afterwards you can verify that it works by running and tracking an example DAG.

Setup

As we have installed the external dependencies required by Airflow (Postgresql and Redis) we can now install the Airflow cluster itself.

Supported versions for PostgreSQL and Redis can be found in the Airflow documentation.

Secret with Airflow credentials

A secret with the necessary credentials must be created, this entails database connection credentials as well as an admin account for Airflow itself. Create a file called airflow-credentials.yaml:

---
apiVersion: v1
kind: Secret
metadata:
  name: simple-airflow-credentials
type: Opaque
stringData:
  adminUser.username: airflow
  adminUser.firstname: Airflow
  adminUser.lastname: Admin
  adminUser.email: airflow@airflow.com
  adminUser.password: airflow
  connections.secretKey: thisISaSECRET_1234
  connections.sqlalchemyDatabaseUri: postgresql+psycopg2://airflow:airflow@airflow-postgresql.default.svc.cluster.local/airflow
  connections.celeryResultBackend: db+postgresql://airflow:airflow@airflow-postgresql.default.svc.cluster.local/airflow
  connections.celeryBrokerUrl: redis://:redis@airflow-redis-master:6379/0

And apply it:

kubectl apply -f airflow-credentials.yaml

The connections.secretKey will be used for securely signing the session cookies and can be used for any other security related needs by extensions. It should be a long random string of bytes.

connections.sqlalchemyDatabaseUri must contain the connection string to the SQL database storing the Airflow metadata.

connections.celeryResultBackend must contain the connection string to the SQL database storing the job metadata (in the example above we are using the same postgresql database for both).

connections.celeryBrokerUrl must contain the connection string to the Redis instance used for queuing the jobs submitted to the airflow executor(s).

The adminUser fields are used to create an admin user. Please note that the admin user will be disabled if you use a non-default authentication mechanism like LDAP.

Airflow

An Airflow cluster is made of up three components:

  • webserver: this provides the main UI for user-interaction

  • executors: the CeleryExecutor or KubernetesExecutor nodes over which the job workload will be distributed by the scheduler

  • scheduler: responsible for triggering jobs and persisting their metadata to the backend database

Create a file named airflow.yaml with the following contents:

---
apiVersion: airflow.stackable.tech/v1alpha1
kind: AirflowCluster
metadata:
  name: airflow
spec:
  image:
    productVersion: 2.8.1
  clusterConfig:
    loadExamples: true
    exposeConfig: false
    listenerClass: external-unstable
    credentialsSecret: simple-airflow-credentials
  webservers:
    roleGroups:
      default:
        replicas: 1
  celeryExecutors:
    roleGroups:
      default:
        replicas: 2
    config:
      resources:
        cpu:
          min: 400m
          max: 800m
        memory:
          limit: 2Gi
  schedulers:
    roleGroups:
      default:
        replicas: 1

And apply it:

kubectl apply -f airflow.yaml

Where:

  • metadata.name contains the name of the Airflow cluster.

  • the product version of the Docker image provided by Stackable must be set in spec.image.productVersion.

  • spec.celeryExecutors: deploy executors managed by Airflow’s Celery engine. Alternatively you can use kuberenetesExectors that will use Airflow’s Kubernetes engine for executor management. For more information see https://airflow.apache.org/docs/apache-airflow/stable/executor/index.html#executor-types).

  • the spec.clusterConfig.loadExamples key is optional and defaults to false. It is set to true here as the example DAGs will be used when verifying the installation.

  • the spec.clusterConfig.exposeConfig key is optional and defaults to false. It is set to true only as an aid to verify the configuration and should never be used as such in anything other than test or demo clusters.

  • the previously created secret must be referenced in spec.clusterConfig.credentialsSecret.

Please note that the version you need to specify for spec.image.productVersion is the desired version of Apache Airflow. You can optionally specify the spec.image.stackableVersion to a certain release like 23.11.0 but it is recommended to leave it out and use the default provided by the operator. For a list of available versions please check our image registry. It should generally be safe to simply use the latest version that is available.

This will create the actual Airflow cluster.

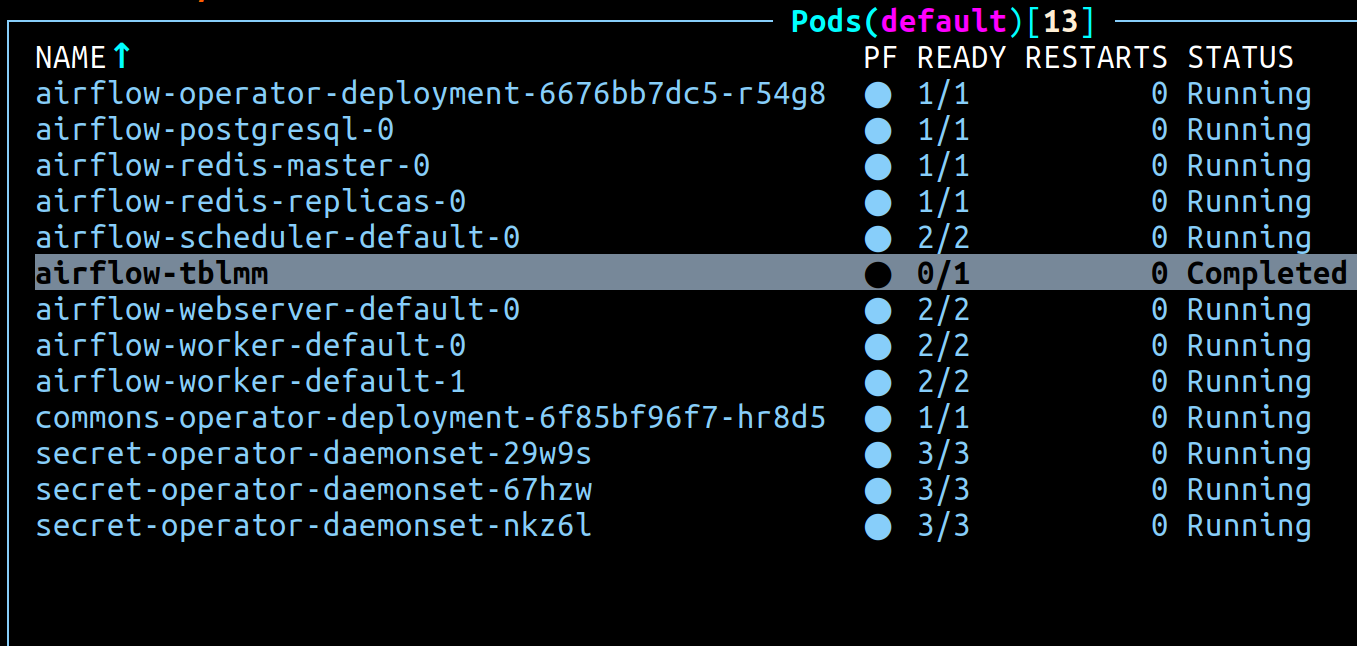

After a while, all the Pods in the StatefulSets should be ready:

kubectl get statefulset

The output should show all pods ready, including the external dependencies:

NAME                            READY   AGE
airflow-postgresql              1/1     16m
airflow-redis-master            1/1     16m
airflow-redis-replicas          1/1     16m
airflow-scheduler-default       1/1     11m
airflow-webserver-default       1/1     11m
airflow-celery-executor-default 2/2     11m

When the Airflow cluster has been created and the database is initialized, Airflow can be opened in the browser: the webserver UI port defaults to 8080 can be forwarded to the local host:

kubectl port-forward svc/airflow-webserver 8080 2>&1 >/dev/null &

Verify that it works

The Webserver UI can now be opened in the browser with http://localhost:8080. Enter the admin credentials from the Kubernetes secret:

Airflow login screen

Since the examples were loaded in the cluster definition, they will appear under the DAGs tabs:

Example Airflow DAGs

Select one of these DAGs by clicking on the name in the left-hand column e.g. example_trigger_target_dag. Click on the arrow in the top right of the screen, select "Trigger DAG" and the DAG nodes will be automatically highlighted as the job works through its phases.

Airflow DAG in action

Great! You have set up an Airflow cluster, connected to it and run your first DAG!

Alternative: Using the command line

If you prefer to interact directly with the API instead of using the web interface, you can use the following commands. The DAG is one of the example DAGs named example_trigger_target_dag. To trigger a DAG run via the API requires an initial extra step to ensure that the DAG is not in a paused state:

  curl -s --user airflow:airflow -H 'Content-Type:application/json' \
    -XPATCH http://localhost:8080/api/v1/dags/example_trigger_target_dag \
    -d '{"is_paused": false}'

A DAG can then be triggered by providing the DAG name (in this case, example_trigger_target_dag). The response identifies the DAG identifier, which we can parse out of the JSON like this:

  curl -s --user airflow:airflow -H 'Content-Type:application/json' \
    -XPOST http://localhost:8080/api/v1/dags/example_trigger_target_dag/dagRuns \
    -d '{}' | jq -r '.dag_run_id'

If we read this identifier into a variable such as dag_id (or replace it manually in the command) we can run this command to access the status of the DAG run:

  curl -s --user airflow:airflow -H 'Content-Type:application/json' \
    -XGET http://localhost:8080/api/v1/dags/example_trigger_target_dag/dagRuns/"$dag_id" | jq -r '.state'

What’s next

Look at the Usage guide to find out more about configuring your Airflow cluster and loading your own DAG files.
